XSF and XLCF Type Spiral Sand (Coarse Particle) Water Separator
Keywords: pretreatment equipment, aeration equipment
Product Description

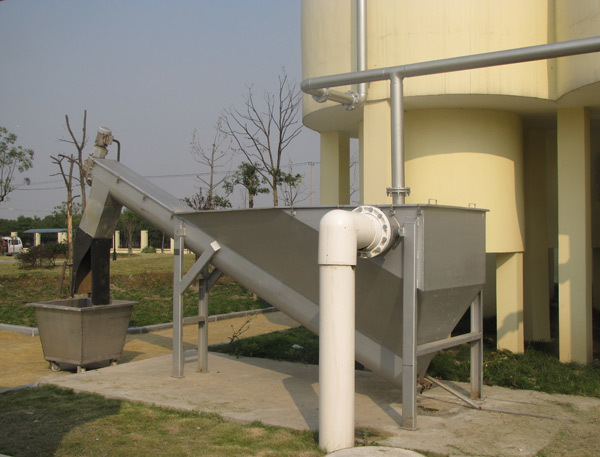

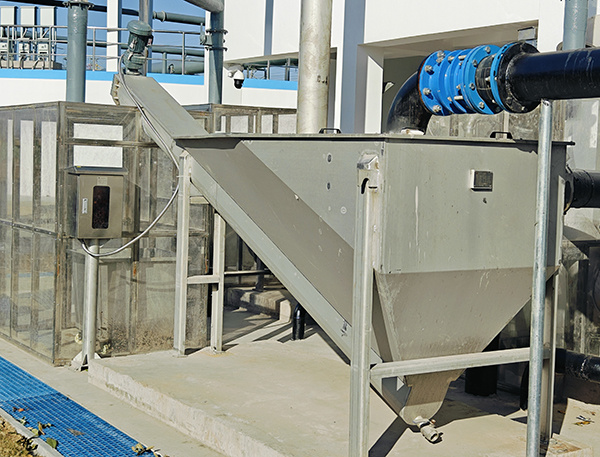

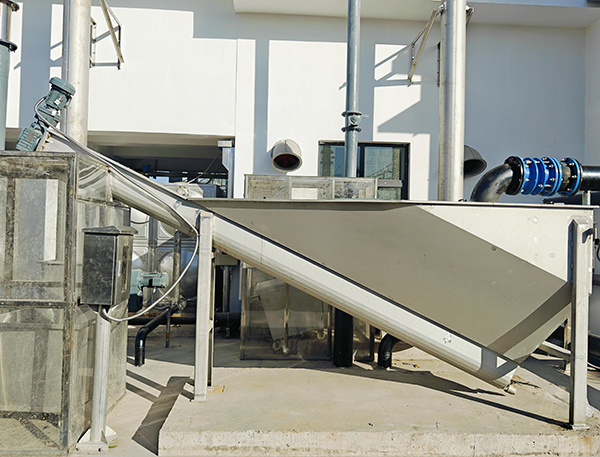

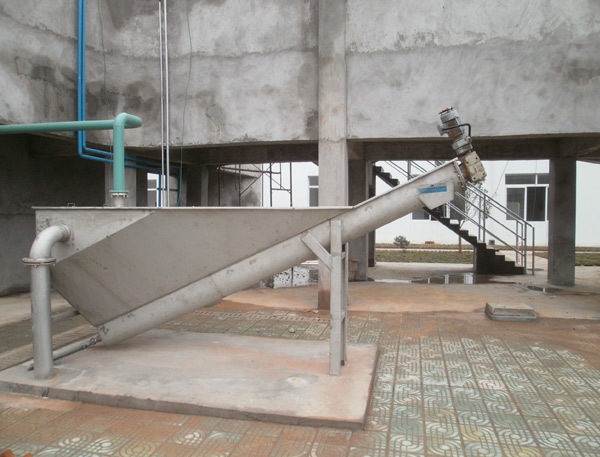

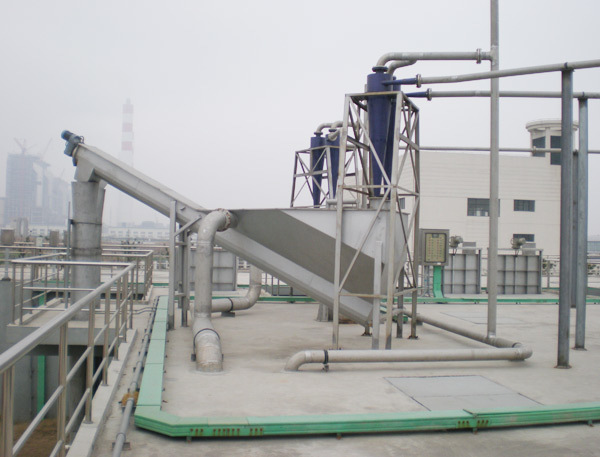

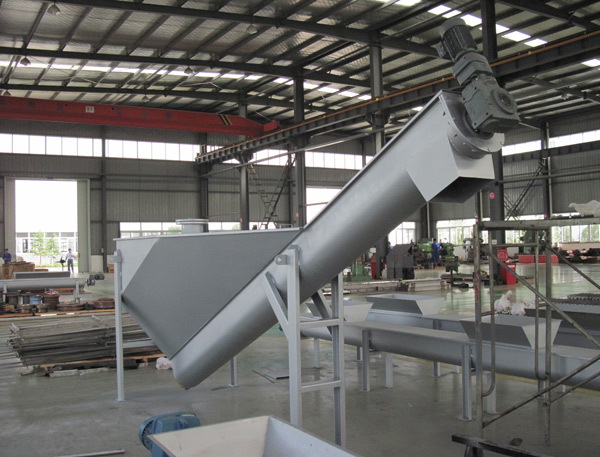

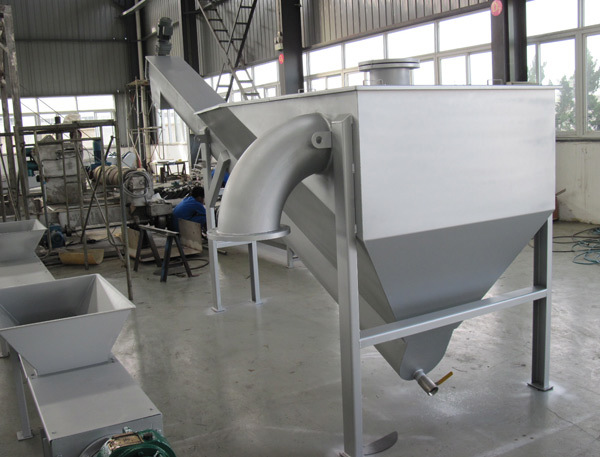

The XSF-type sand–water separator is an auxiliary device in sand‑removal systems. It employs the principle of gravitational sedimentation to further separate sand from the sand–water mixture discharged by the grit‑removal system. Featuring a fully enclosed design, it occupies a small footprint and delivers high separation efficiency, making it an ideal sand–water separation unit. It is primarily used in the fine‑grit chambers of municipal wastewater treatment plants.
Its characteristics:
● It employs a shaftless screw conveyor design, eliminating the need for underwater bearings, resulting in lightweight construction and easy maintenance.
● Equipped with the latest shaft-mounted reducer, it offers high transmission efficiency, a compact structure, smooth operation, and easy installation.
● The U-shaped groove is lined with shock-absorbing, wear-resistant strips, ensuring low noise and easy replacement.
● The entire unit is easy to install and simple to operate;
● Fully enclosed design, compact footprint, high separation efficiency, and environmentally friendly and hygienic.
Working principle
The sand–water mixture enters the sand–water separator through the feed inlet, where a constant‑volume water layer is established within the separation chamber. The settled sand accumulates at the bottom and is conveyed upward by a slowly rotating shaftless screw; the sand particles move along a defined incline, gradually rising above the water surface and being discharged at the outlet. As the sand exits the water, it undergoes further dewatering, while the clarified supernatant is discharged from the overflow port of the separation chamber, thereby achieving effective sand–water separation.
