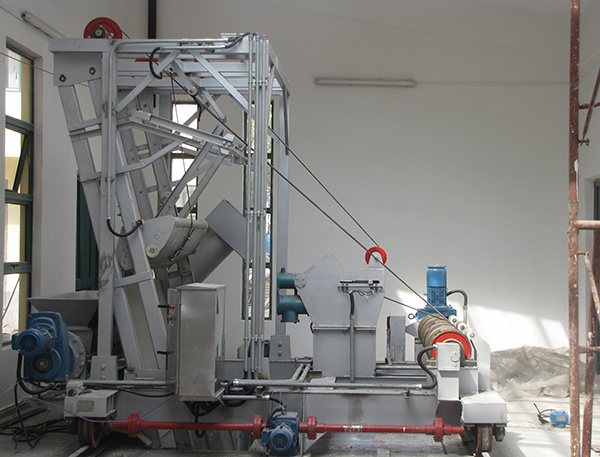

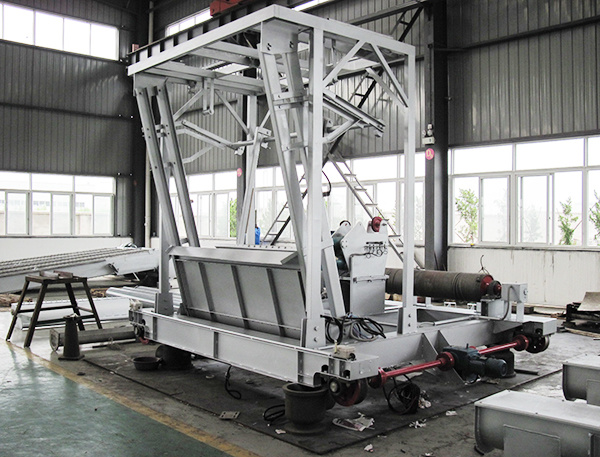

XSGY Mobile Bucket-Grate Trash Cleaner
Keywords: pretreatment equipment, aeration equipment
Product Description
Ground‑mounted, rail‑guided mobile bar screens are primarily used at intake structures and intermediate pumping stations in water‑treatment facilities for irrigation, power plants, metallurgy, and municipal applications. They serve to intercept and remove aquatic vegetation and aquatic organisms from the water flow, as well as debris and waste from industrial, agricultural, and urban wastewater, thereby ensuring the proper operation of downstream equipment.
Ground‑mounted, rail‑guided mobile grille cleaners are suitable for applications involving multiple parallel flat‑type gratings or extra‑wide flat‑type gratings, and are typically used as medium‑ to coarse‑grit screens.
Grating machines are typically arranged along a straight line or an arc, with the main unit moving and positioning itself on rails. This single machine replaces multiple units, sequentially and systematically removing debris one by one.
Its characteristics:
● The machine features a well‑designed structure that is compact and space‑efficient.
● Multi‑slot debris removal with a single unit: low investment, excellent cleaning performance, stable and reliable operation, and precise positioning.
● Large cleaning area, thorough debris removal, and even capable of collecting sludge or sediment after reducing speed;
● No transmission components underwater, making maintenance convenient and straightforward.
● This equipment is equipped with overload and overtorque protection devices, ensuring safe and reliable operation.
● Robust structure capable of withstanding significant water level differences;
● The bar screen can operate on a timed, intermittent schedule or be automatically controlled based on the differential water level upstream and downstream of the screen.
● When used in conjunction with a conveyor or a press, it can achieve fully automated operation.
2. Operating Principle

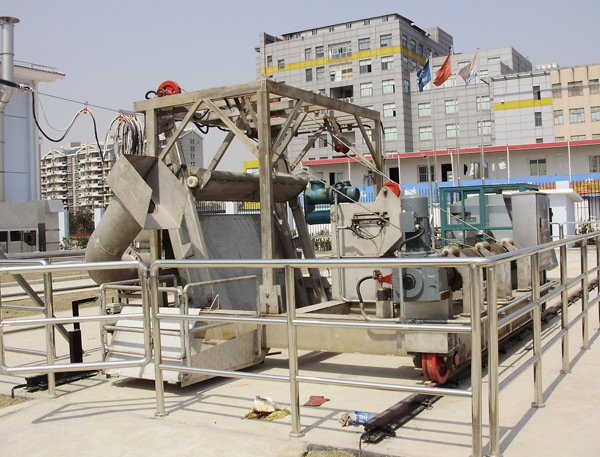

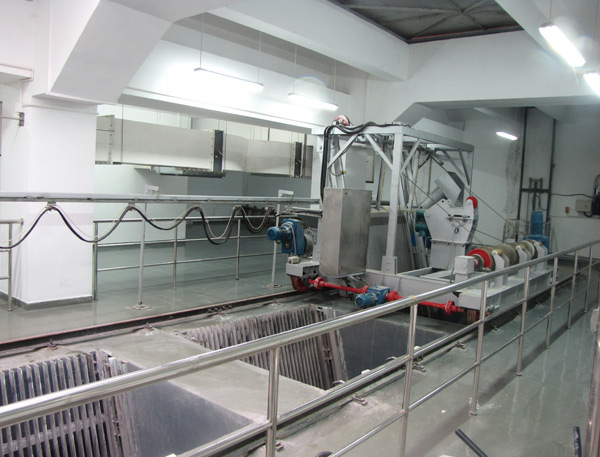

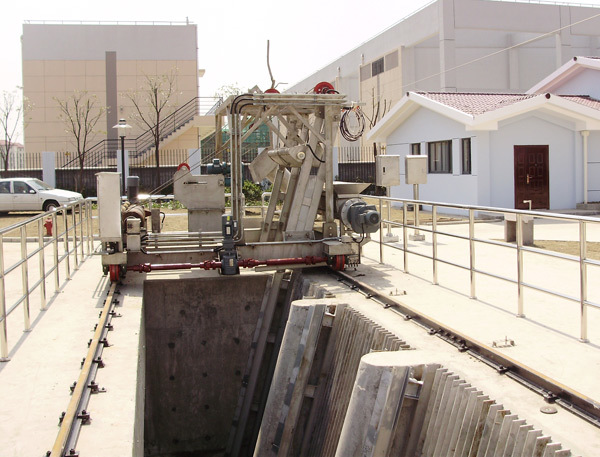

The mobile frame of the ground‑mounted rail‑type moving grille cleaner is mounted on a set of steel rails at the top of the tank. Walking steel wheels are installed beneath the frame, and a drive motor propels the frame along the rails, enabling it to position itself accurately at any designated station—either automatically or according to a pre‑set program. Once positioned, the grille cleaner automatically performs a sequence of operations, including lowering the rake, closing the rake, lifting the debris, discharging the collected material, and opening the rake. The frequency of these cleaning cycles can be programmed via a PLC or a time relay, based on the amount of debris in each chamber. Upon completion of cleaning in the first chamber, the unit automatically moves to the second chamber to repeat the process. After all chambers have been cleaned, the grille cleaner returns to its initial position and awaits the next operational command.
