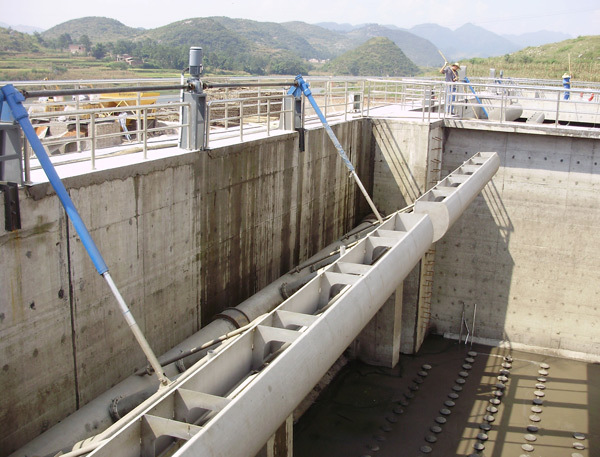

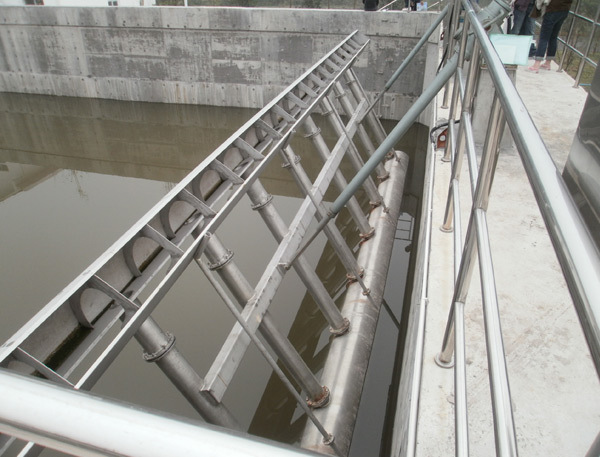

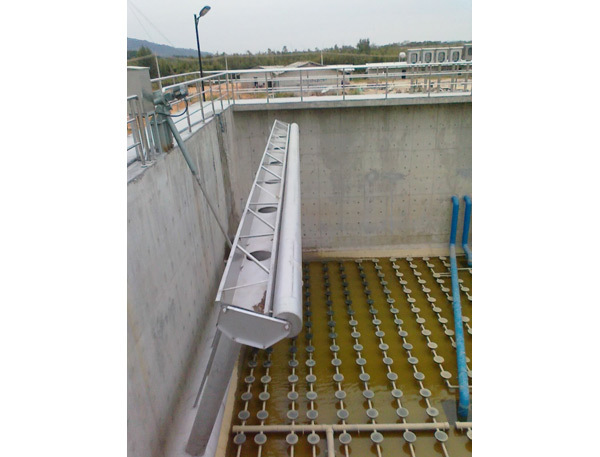

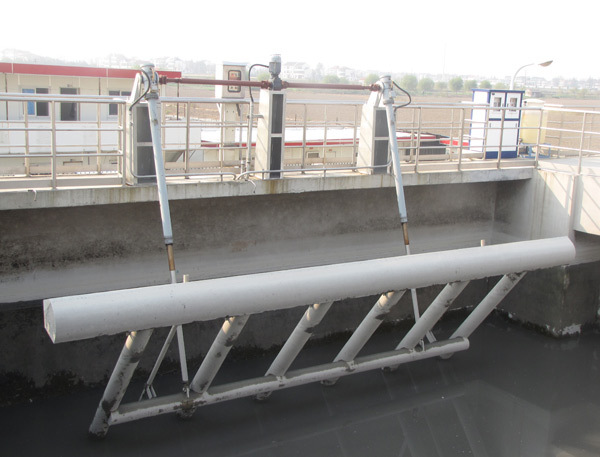

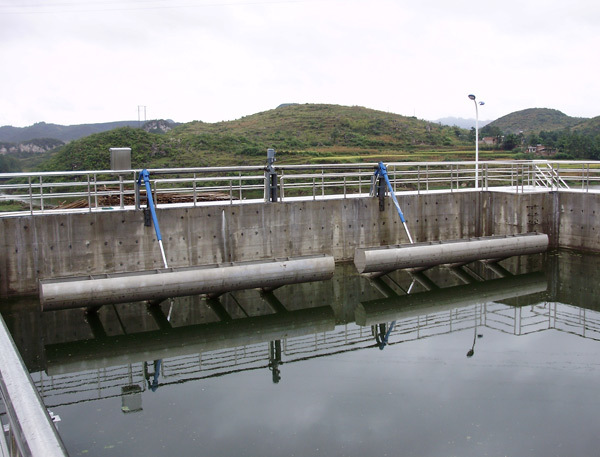

XPS-type decanter


Sample Download XPS Decanter The XPS decanter is a key piece of equipment commonly used in wastewater treatment processes such as the SBR, CASS, and ICEAS methods. During the effluent‑discharge phase, it automatically rises and falls with the water level, allowing the treated supernatant to be discharged from the surface while effectively retaining surface scum within the reaction tank. Its features include:  A relatively deep decanting depth, up to 3.0 m;  Large decanting capacity, with the decanting weir opening capable of reaching 20.0 m;  A steady‑rate decanting operation combined with a rapid return stroke, ensuring reliable performance;  Smooth decanting action that avoids disturbing the settled sludge;  A decanting weir equipped with a scum‑retaining barrier.

Keywords: pretreatment equipment, aeration equipment

Product Description

XPS-type decanter

  The XPS-type decanter is a key piece of equipment commonly used in wastewater treatment processes such as the SBR, CASS, and ICEAS methods. During the effluent‑discharge phase, it automatically rises and falls in response to changes in water level, allowing the treated supernatant to be discharged from the surface while effectively retaining surface scum within the reaction tank.
Its characteristics:
 The decanting depth is relatively large, with a maximum of 3.0 m;
 Large decanting capacity; the maximum length of the decanting weir can be designed up to 20.0 m.
 Employs a constant-speed decanting and rapid return operating mode, ensuring reliable performance.
 The decanting process is stable and does not disturb the settled sludge;
 The decanting weir is equipped with a scum baffle, preventing scum from being carried out during the decanting process.
 It can be configured with left‑hand, right‑hand, or dual‑outlet designs to meet various requirements, offering a wide range of configurations.
 The drive and transmission components are located above the tank, facilitating easy maintenance and servicing.
Working principle
  The decanter typically rests above the highest water level in the tank.
  Within the set time interval, the decanter lowers the decanting weir to below the water surface via a motor, reducer, and push rod. At this point, the liquid-level switch sends a signal to initiate variable-speed decanting. Simultaneously, buoyancy causes the float‑type scum‑removal mechanism to push aside and retain floating debris, allowing the clarified supernatant to enter the weir trough, begin decanting, and be discharged from the tank through a horizontal rotary drainage pipe. The water level in the tank steadily declines until the preset water level (or time) is reached, at which point the process stops and the system rapidly returns to its initial position, bringing the weir back to its original location and completing one decanting cycle, awaiting the next command.
