Product Description

Center-driven sludge scraper, thickener

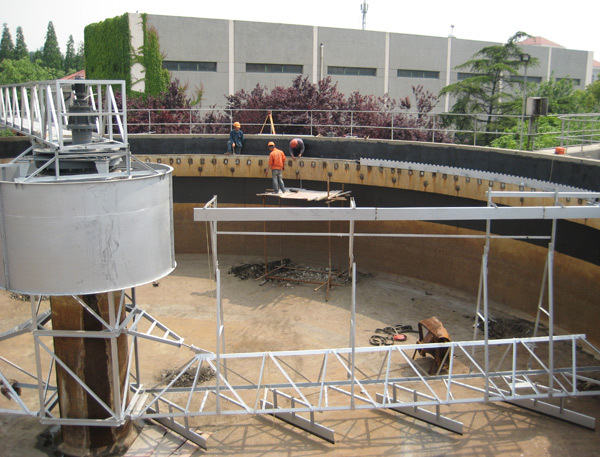

  Center‑drive sludge scrapers and thickeners are widely used in wastewater treatment projects across industries such as municipal services, petrochemicals, papermaking, and steel. They are typically suited for bottom sludge removal in various circular thickening tanks with relatively small diameters, operating under a configuration of central inflow, central sludge discharge, and peripheral outflow.
Wastewater enters the tank from the center, while sludge settles radially toward the periphery. The supernatant is collected by peripheral collection troughs, and the thickener scrapes the settled sludge into a central sludge sump for discharge from the tank.
Features:
 Typically, a high-torque transmission is employed, ensuring smooth and reliable power transmission.
 The scraper angle is adjustable to accommodate pools with varying slopes, and manual rake lifting is also possible.
 The functionality is scalable, with options such as adding a torque‑control indicator and an automatic rake‑lifting mechanism.
 The mud scraper features a rubber composite structure, ensuring thorough mud removal.
 Simple structure, easy to install and use.
Working principle
  Wastewater enters the sedimentation tank through a central flow‑stabilizing cylinder at a specified velocity. As the flow rate decreases, both inert and activated sludge settle to the tank bottom. The thickener’s drive mechanism rotates the scraper arm, and scrapers mounted on the arm progressively convey the settled sludge from the tank perimeter toward the central sludge hopper. Simultaneously, the thickening bars attached to the scraper arm rotate, further accelerating sludge settling. Under the action of its own hydrostatic pressure or a pump, the sludge is discharged from the tank and passes through the effluent weir into the downstream process, thereby removing settled solids from the wastewater.
