XZXX-type center-driven single (or double) pipe sludge suction machine

  XZXX-type center‑drive single‑ or double‑tube sludge suction machines are typically used in radial‑flow sedimentation tanks for large‑scale wastewater treatment plants, and are particularly well suited for scraping and removing activated sludge from the bottom of secondary clarifiers.
  The typical process features inflow at the periphery, outflow at the periphery, and sludge discharge from the center. Settled sludge is drawn to the tank’s center via a sludge suction pipe, and the sludge discharge rate (and thus the return ratio) is regulated by an external sleeve-type sludge discharge valve.
Its characteristics:
 The peripheral water distribution system was tested using a hydraulic model; the inlet trough and distribution holes were designed with an uneven layout to ensure uniform water distribution.

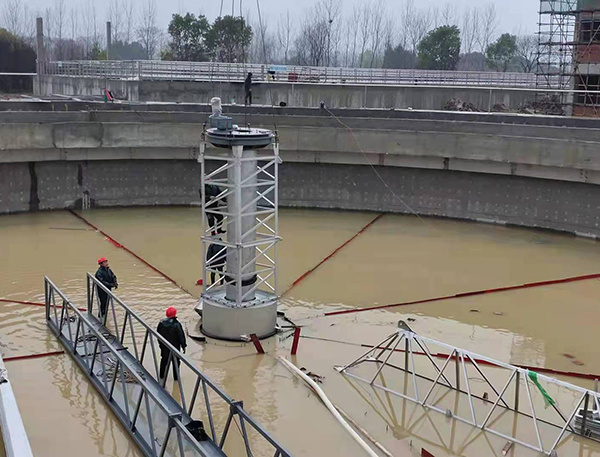

 The central support pier is designed with a steel structure to simplify construction and ensure transmission accuracy.
 The vertical‑rack sludge suction pipe, with appropriately balanced counterweights, operates smoothly and reliably.
 Water level and reflux ratio are adjustable and controllable;

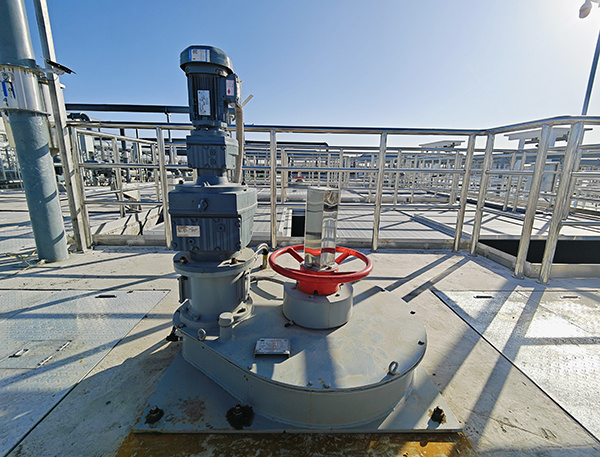

 A novel transmission device that delivers high torque and features overload protection;
 The sludge collection pipe inlet and the sludge scraper are specially designed for thorough sludge removal.

Working principle

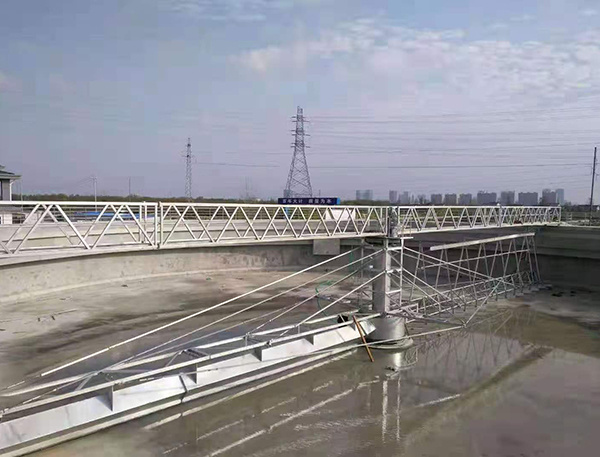

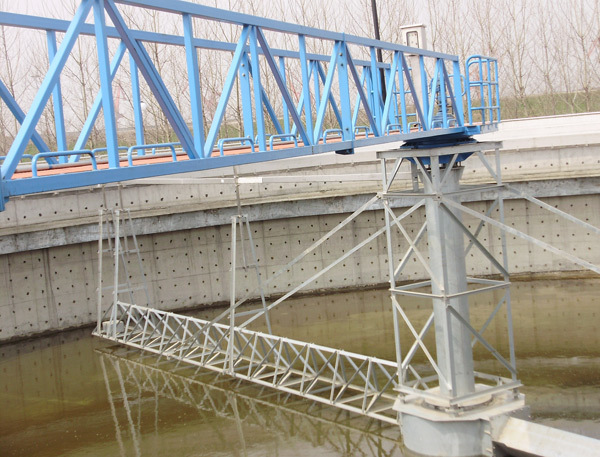

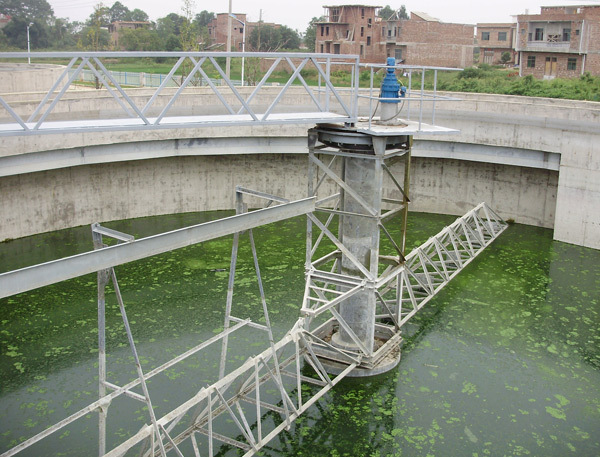

  Wastewater enters the distribution pipes, which are unevenly arranged, via a variable‑section distribution trough located around the perimeter of the tank at a specified flow velocity. The baffles on the distribution pipes reduce the flow rate, while the peripheral distribution skirt ensures that the influent is evenly distributed from the tank bottom toward the center. Inert and activated sludge in the water settle to the tank bottom. The central drive unit of the centrally driven single‑ or double‑pipe sludge scraper installed within the tank drives the scraping and suction frame to rotate inside the tank through the central rotary support; the suction pipe and scraper blades, mounted parallel to the tank bottom, rotate accordingly. Inert sludge settling at the bottom is scraped into the central sludge collection pit and discharged from the tank. Activated sludge, under the pressure differential between the tank’s interior and exterior water levels, is drawn into the suction pipe and conveyed to the central sludge collection tank for removal. A surface skimmer collects floating scum from the liquid surface and scrapes it into a discharge hopper at the tank edge, from where it is removed. The clarified supernatant bypasses the scum baffle and, passing over a horizontally oriented effluent weir, is evenly discharged into the effluent channel for subsequent treatment steps.
