XZBX peripheral drive sludge pump


Sample download of XZBX peripheral drive sludge scraper. The XZBX peripheral drive sludge scraper is generally used in radial flow sedimentation tanks in large wastewater treatment projects, and is particularly suitable for scraping and discharging activated sludge from the bottom of secondary sedimentation tanks. The process is generally central inflow, peripheral outflow, and central sludge discharge. A central column that also serves as an inflow pipe is generally installed in the center of the tank. The lower part of the column pipe is connected to the inflow pipe of the tank, and the upper opening is sealed to serve as a platform for the central support, with water outlets around the pipe wall. The central column is mostly made of reinforced concrete, but steel structures can also be used. Its features: Simple structure, light weight. Saves operating costs and maintenance.

Keywords: pretreatment equipment, aeration equipment

Product Description

XZBX Peripheral Drive Sludge Suction Machine

  The XZBX peripheral drive sludge suction machine is generally used in radial flow sedimentation tanks in large-scale wastewater treatment projects, especially suitable for scraping and discharging activated sludge at the bottom of secondary sedimentation tanks.
The process is generally central inflow, peripheral outflow, and central sludge discharge.

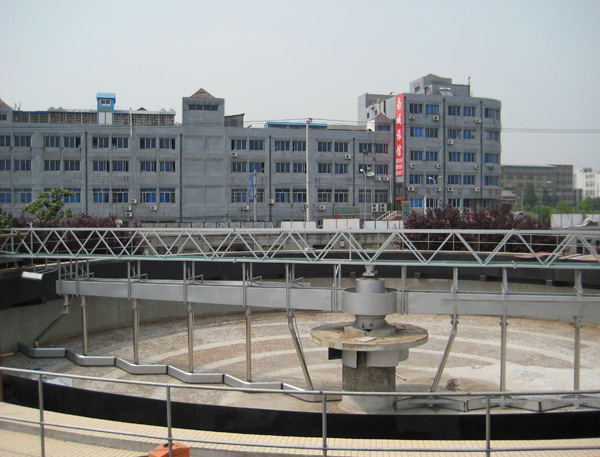

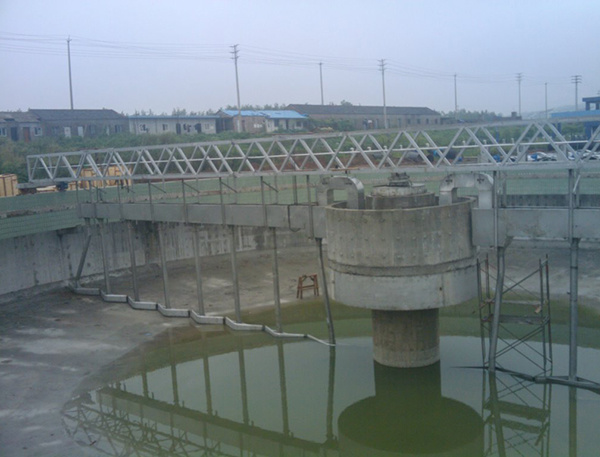

A central column, which also serves as an inflow pipe, is generally installed in the center of the tank. The lower part of the column is connected to the inflow pipe of the tank, and the upper opening is sealed to serve as a platform for the central support, with water outlets around the pipe wall. The central column is mostly made of reinforced concrete, but steel structures can also be used.
Its characteristics
 Simple structure, light weight.
 Saves operating costs and is easy to maintain.
 Novel transmission device, easy installation, compact structure, high efficiency, and light weight.
 An over-torque protection mechanism can be equipped according to specific requirements. When the torque value reaches the set value, it automatically alarms and stops, ensuring safety and reliability.
 The sludge suction system relies on its own water pressure and does not require a power source.
Working principle

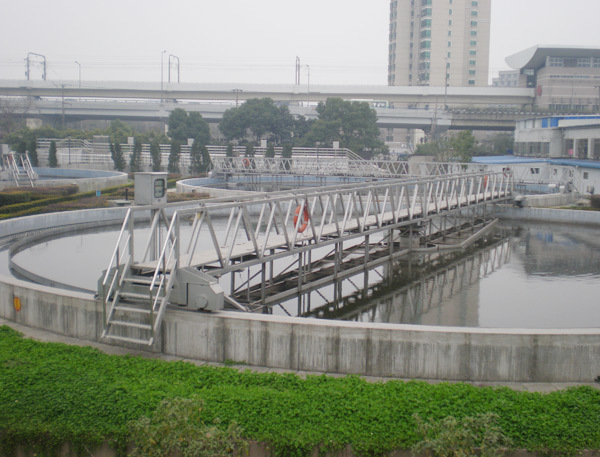

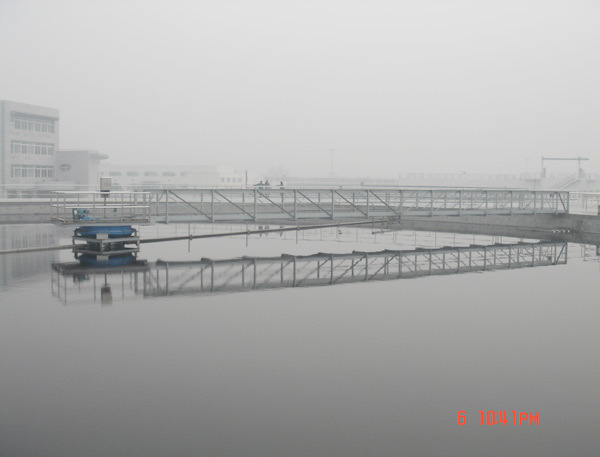

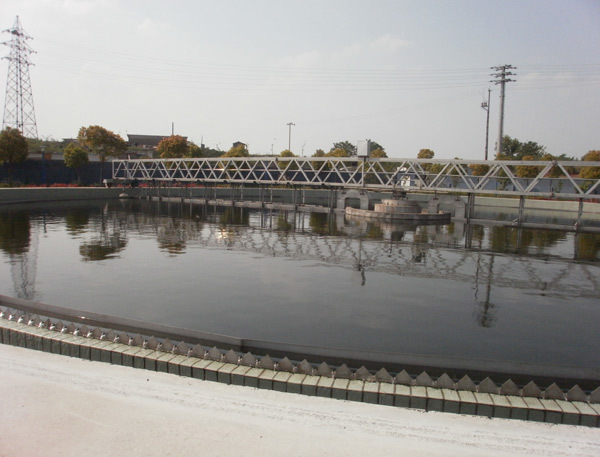

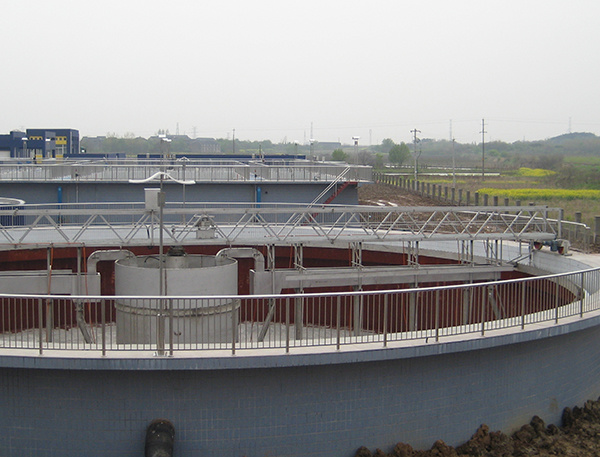

  Wastewater enters the sedimentation tank through the central calming tube at a certain flow rate. As the flow rate decreases, the activated sludge in the wastewater settles to the bottom of the tank. The sludge suction machine drive mechanism drives the working bridge to rotate along the tank plane. The working bridge drives the sludge suction nozzle supported by the lower truss to rotate. Under the action of the liquid level difference, the sludge suction pipe sucks the sludge into the sludge collection trough. The U-shaped pipe siphon system sucks the sludge in the sludge collection trough into the central sludge cylinder (concrete structure) and discharges it outside the tank. The floating scum on the water surface is collected by the scum removal device installed at the water surface position of the sludge suction machine and discharged into the scum collection hopper. The top clear water overflows the scum baffle and flows into the next process through the outlet weir plate to remove the settled sludge and scum in the wastewater.
