XGSG-type wire rope–driven sludge scraper


Sample Download: XGSG Wire Rope–Driven Sludge Scraper The XGSG wire rope–driven sludge scraper is primarily designed for use in horizontal-flow sedimentation tanks to collect and remove sludge from the tank bottom. It features low capital investment and simple, convenient installation, making it an ideal sludge‑removal device for sedimentation tanks. Key Features: 1. Suitable for sludge removal in inclined‑plate (or tube) horizontal‑flow sedimentation tanks, reducing civil‑engineering costs, minimizing water loss, and lowering operational complexity and expenses. 2. Highly adaptable to variations in water quality, with strong sludge‑scraping performance and high removal efficiency. 3. Simple structure, easy operation, and readily compatible with automated control systems. 4. Smooth and stable operation.

Keywords: pretreatment equipment, aeration equipment

Product Description



XGSG-type wire rope–driven sludge scraper

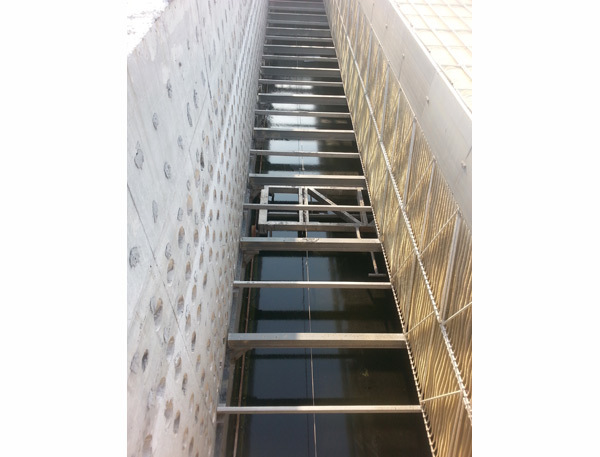

  The XGSG-type wire‑rope‑driven sludge scraper is primarily designed for use in horizontal flow sedimentation tanks to collect and remove sludge from the tank bottom. Featuring low capital investment and straightforward, easy installation, it is a highly suitable sludge‑removal device for sedimentation tanks.
Features:
1. Suitable for sludge removal in inclined-plate (tube) horizontal-flow sedimentation tanks, it reduces capital construction costs and water loss while also lowering operational difficulties and expenses.
2. It exhibits strong adaptability to changes in water quality, possesses robust sludge-scraping capabilities, and achieves high sludge removal efficiency.
3. Simple structure, convenient operation, and easy to implement automatic control;
4. Operates smoothly and reliably, with no deviation; compact in size, requiring only routine maintenance when replacing the inclined plates (tubes).
Working principle

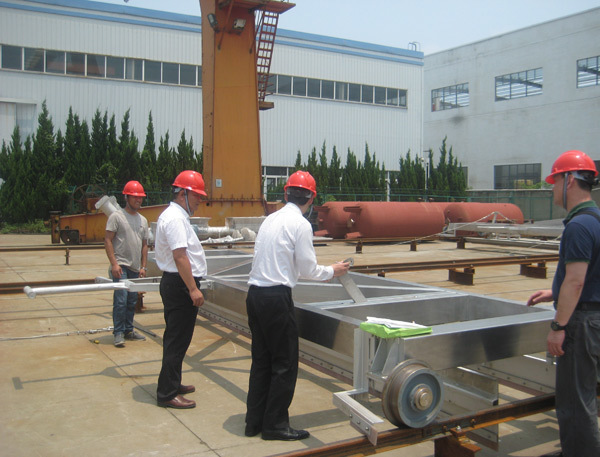

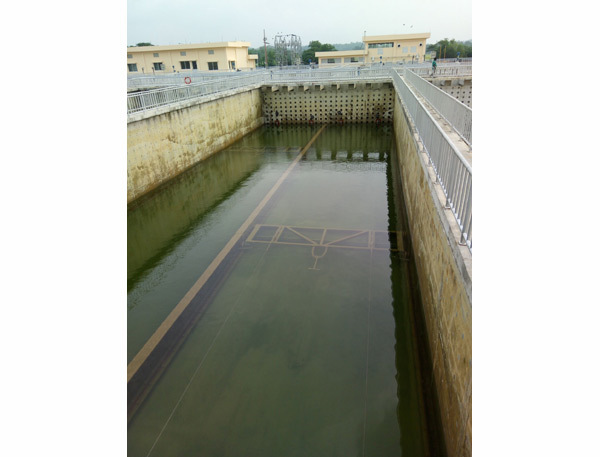

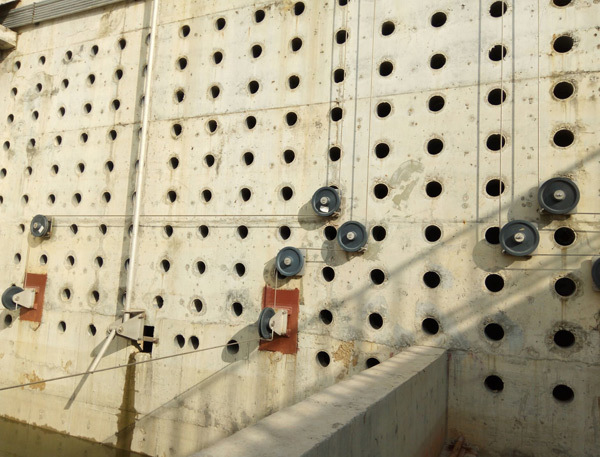

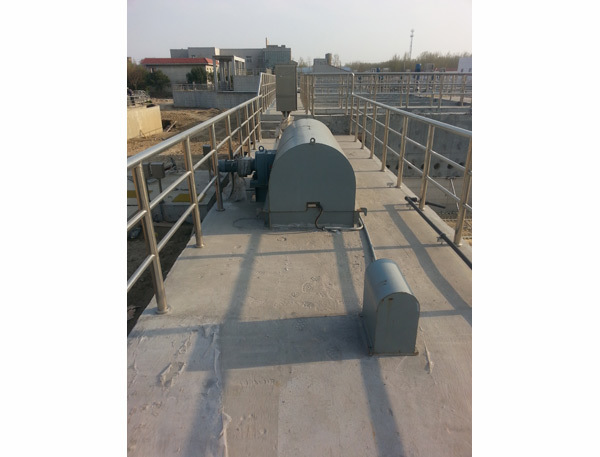

  The reducer drives the wire‑rope drum to rotate in both forward and reverse directions, causing the wire rope to pull the underwater sludge scraper back and forth. The scraper blade mounted beneath the unit collects the settled sludge from the bottom of the tank and conveys it to the sludge collection pits at both ends of the tank. The sludge in these pits is then discharged from the tank either by submersible pumps or by the tank’s own hydrostatic pressure, thereby achieving the removal of settled sludge from the tank bottom.
