XLBG-type non-metallic chain sludge scraper


Sample Download: XLBG Non-Metallic Chain Sludge Scraper The non-metallic chain sludge scraper is suitable for rectangular tanks such as sedimentation basins, grit chambers, and oil‑water separators in water treatment plants or wastewater treatment facilities. It is used to remove sludge or sand, as well as to skim off floating oil and scum. Features: 1) It has a large number of scraper blades, providing strong sludge‑removal capability; the slow blade travel speed minimizes disturbance to the wastewater, promoting effective sedimentation of sludge and sand. 2) The scraper blades move in a continuous straight line without requiring reversing motions, thus eliminating the need for limit switches. The drive unit is mounted on a platform at the top of the tank, making electrical distribution and maintenance straightforward. 3) No additional mechanisms are required, allowing it to function simultaneously as a skimmer. 4) The system contains no heavy structural components or supports.

Keywords: pretreatment equipment, aeration equipment

Product Description

XLBG-type non-metallic chain sludge scraper

  Non-metallic chain sludge scraper is suitable for rectangular tanks such as sedimentation basins, grit chambers, and oil‑water separators in water treatment plants and wastewater treatment facilities, where it is used to scrape sludge or sand and to skim off floating oil and scum.
Features
1) It features a large number of scraper blades and strong sludge‑scraping capability; the slow blade‑moving speed minimizes disturbance to the wastewater, thereby promoting sedimentation of suspended solids.

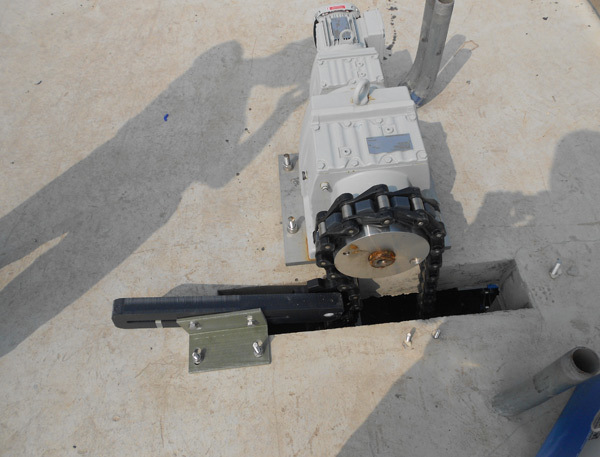

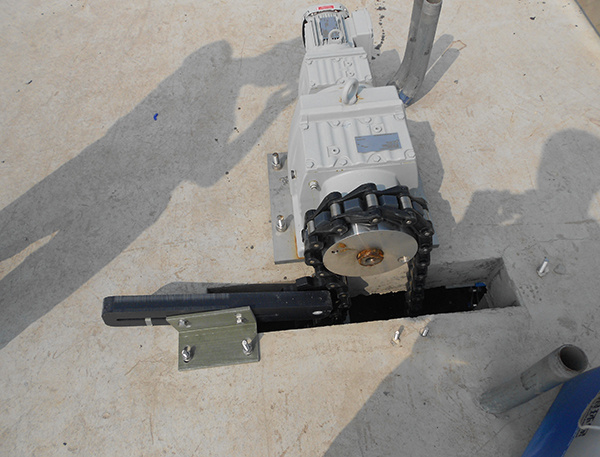

2) The scraper performs continuous linear motion without the need for reciprocating direction changes, thus eliminating the requirement for limit switches. The drive unit is mounted on the platform at the top of the tank, making electrical distribution and maintenance both simple and convenient.
3) No additional equipment is required; it can also function as a skimmer.
4) The system contains no heavy structural components or supports, resulting in low energy consumption.
Working principle

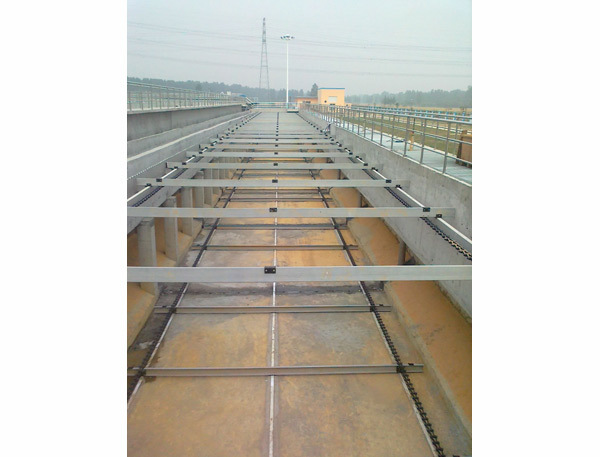

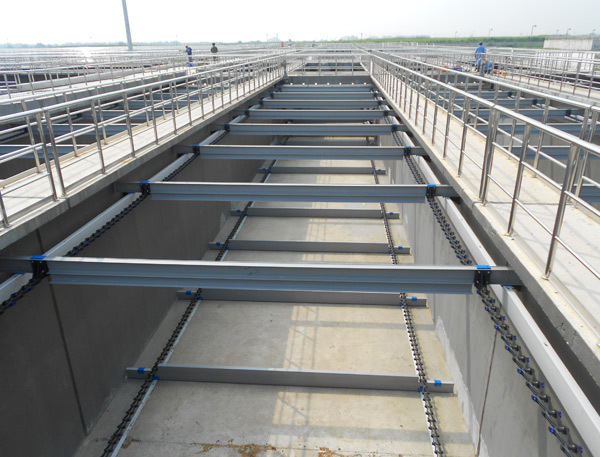

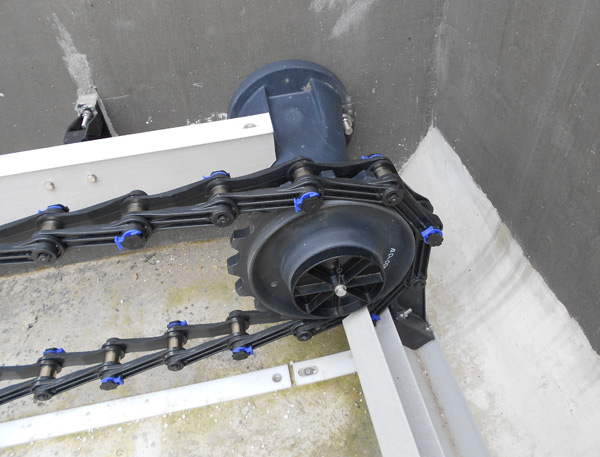

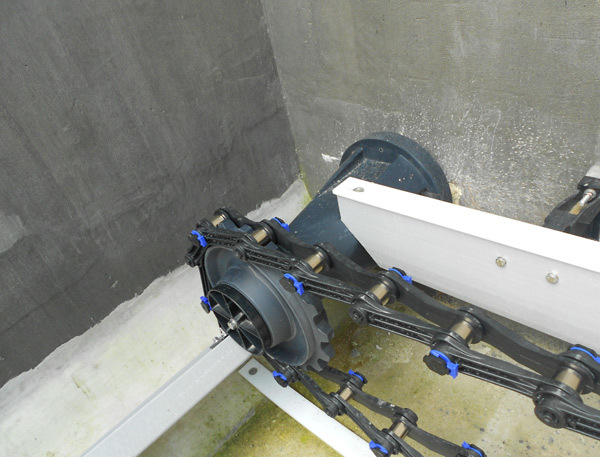

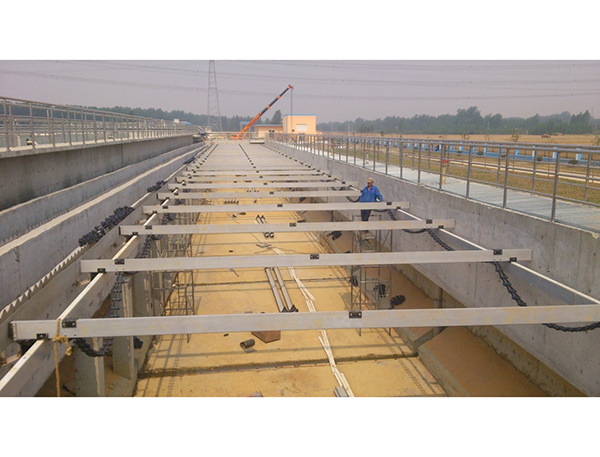

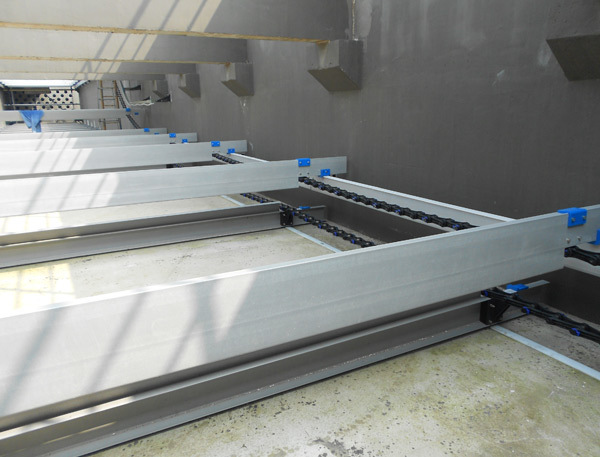

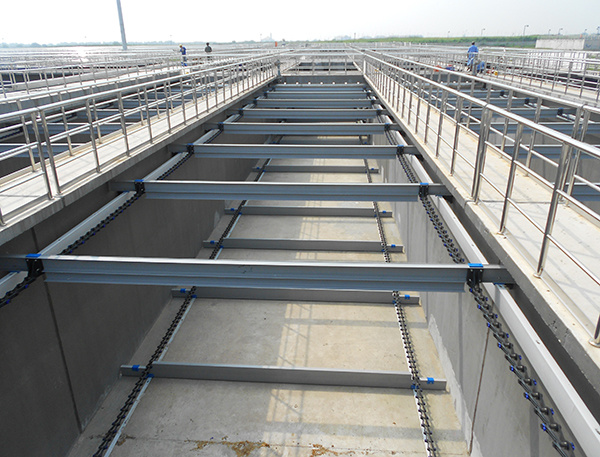

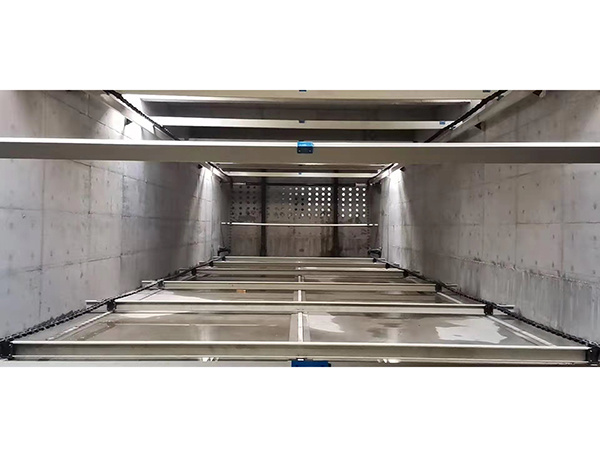

  The non-metallic chain sludge scraper consists of a reducer that drives the conveyor chain and scraper blades, which operate in a circular motion within the tank to scrape bottom sludge into the sludge collection pit. The sludge is discharged from the tank via a sludge discharge valve mounted on one side of the sedimentation tank or through a non‑clogging sewage pump. Surface oil or scum is removed from the tank through an oil‑and‑scum collection pipe installed at the effluent end. The supernatant liquid overflows beneath the collection pipe and flows into the next treatment stage.
