XGYZ type oil and slag scraper
Keywords: pretreatment equipment, aeration equipment
Product Description

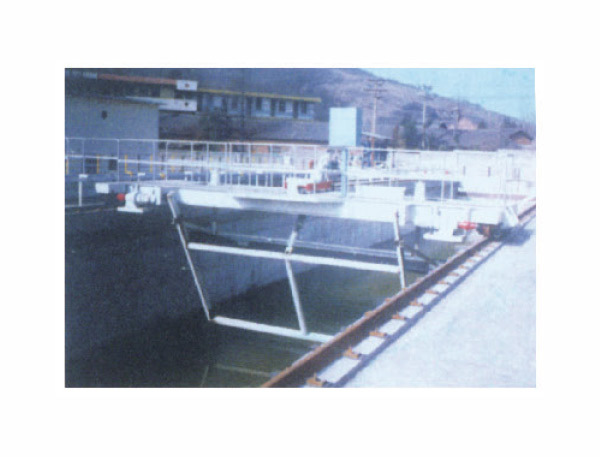

XGYZ Type Oil and Scum Scraper
The oil and scum scraper is mainly used in the horizontal flow sedimentation tank of the circulating water and turbid water treatment system in oil refineries and steel plants to remove floating oil and heavier sediment from the turbid water. It is a heavy-duty oil and scum removal equipment.
This equipment must be used with auxiliary equipment such as oil collection pipes, grabs, and mud discharge valves to separate surface floating oil and scum and sediment, completing the initial purification process.
Features
Hinged scraping arms can automatically scrape in layers without jamming;
Variable speed transmission can achieve fast return function;
Full stroke or half stroke segmented operation can be implemented according to different requirements;
With a lifting rake function, it can achieve load reduction or unidirectional sludge scraping;
When the span is large, two synchronous motors are generally used for driving, ensuring stable operation;
The scraper blade is equipped with rubber plates and positioning rollers, ensuring thorough and reliable sludge scraping.
2. Working Principle
The oil and scum scraper generally stops at the outlet of the pool.
Start the oil and scum scraper walking mechanism. The oil and scum scraper moves along the track (towards the inlet), starts scraping the sediment. When scraping reaches the end, the walking mechanism touches the limit switch, and the walking mechanism stops working. The lifting mechanism starts to lift the sediment scraper and lower the oil scraper. After the sediment scraper is lifted into place, the oil scraper also descends into place (submerged underwater by about 100 mm). The walking mechanism starts to move in the reverse direction, and the oil scraper starts to scrape the oil, sending the oil into the oil discharge trough (or oil collection pipe). When the oil scraping reaches the end point, the walking mechanism touches the limit switch, and the walking mechanism stops working. The sediment scraper starts to descend, and the oil scraper rises simultaneously. After the sediment scraper descends into place, the oil and scum scraper waits for the next scraping (oil) command.
