XZG-type Inward-Flow Bar Screen Cleaner
Keywords: pretreatment equipment, aeration equipment
Product Description
XZG-type Inward-Flow Bar Screen Cleaner
The in‑line drum screen cleaner (also known as a rotary drum fine screen) is a multifunctional integrated unit that combines four key functions: debris interception, drum‑type screening with constant‑pressure clean‑water rinsing, screw‑type lifting, and press‑dewatering. It is a new, highly efficient type of screen cleaner. Consequently, this kind of screen is widely used in wastewater treatment plants where narrow screening gaps (0.5–12 mm) and relatively shallow channel depths (typically less than 3,000 mm) are required, effectively removing floating materials, shredded fibers, and other impurities from the water.
Its characteristics:
Thorough slag removal. High separation efficiency;
Integrates multiple functions into one, with a compact design that occupies minimal space;
Large filtration area and low hydraulic loss;
Easy maintenance and long service life.
Working principle

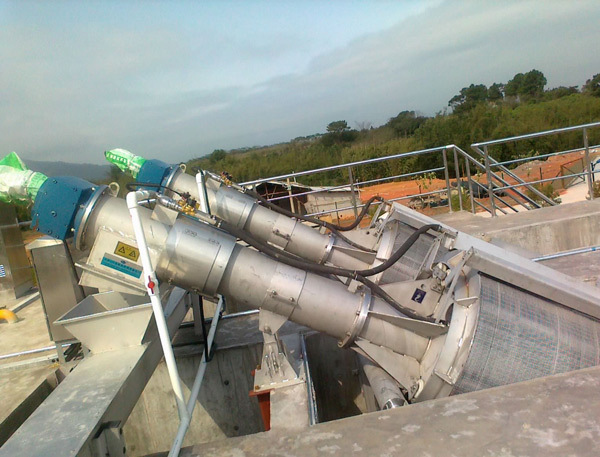

The drum‑type screen is an integrated pretreatment unit. As wastewater flows through the screening basket, flow diversion creates turbulence, effectively agitating and thoroughly separating floating debris, sediments, and suspended solids. Under the action of the rotating drum and the integral sludge‑collecting bars welded to it, waste is conveyed to the surface and, driven by gravity and rinsed with pressurized clean water, automatically falls into the helical trough. Meanwhile, a nylon brush and flushing nozzles mounted above the drum further wash even fine screenings that cannot be dislodged into the trough’s spiral channel. Within this channel, a combined screw‑conveying and dewatering‑pressing unit performs transport, dehydration, and pressing, before discharging the material at the upper outlet.
