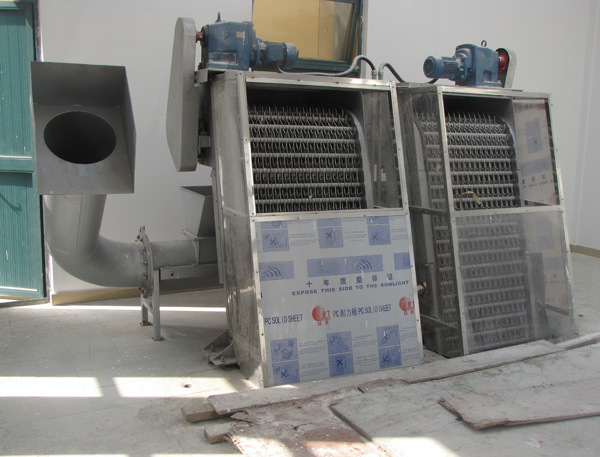

XXQ-type circulating rake-type trash remover

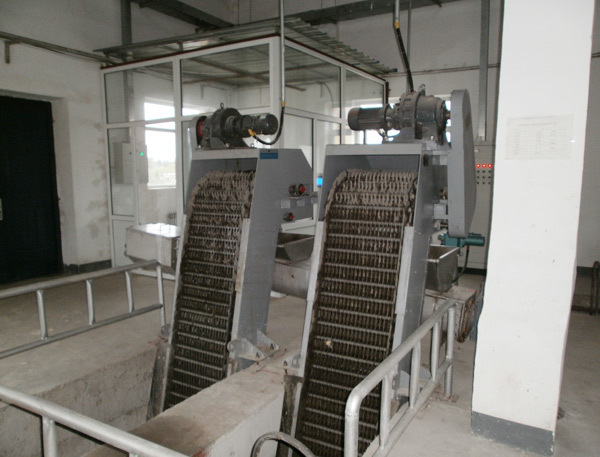

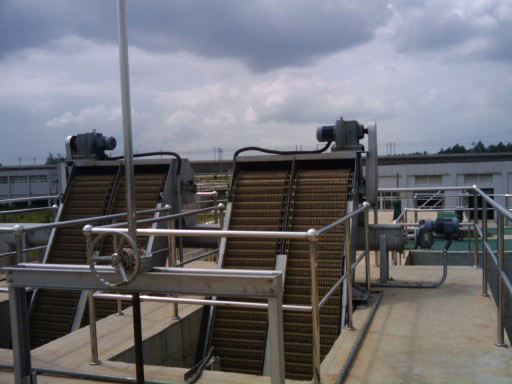

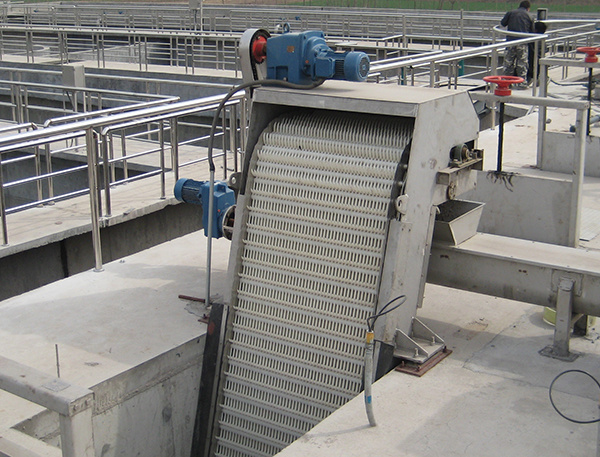

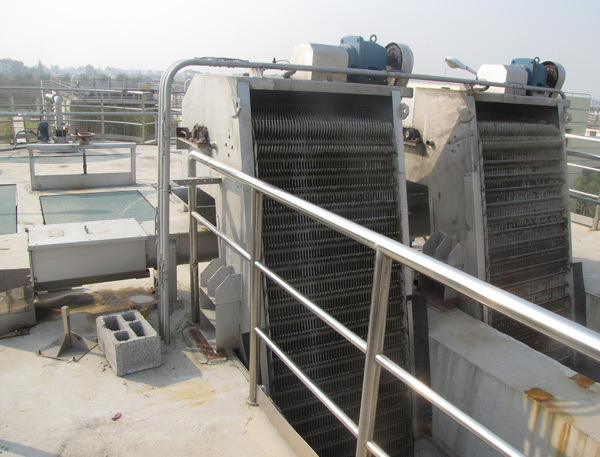

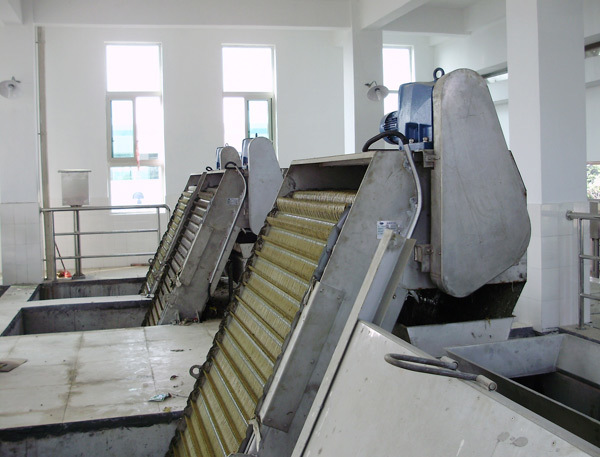

The XXQ-type trash remover (commonly known as a solid–liquid separator) is the second-generation screening equipment jointly developed by our company and Tongji University in Shanghai. It is typically used in small lift pump stations or in the fine-screening grit chambers of municipal wastewater treatment plants.

Keywords: pretreatment equipment, aeration equipment

Product Description

The XXQ-type trash remover (commonly known as a solid–liquid separator) is the second-generation screening equipment jointly developed by our company and Tongji University in Shanghai. It is typically used in small lift pump stations or in the fine‑grit removal chambers of municipal wastewater treatment plants.

The XXQ‑type grille manufactured by our company has passed inspection by the relevant authorities, with certificate number YJ1090063. The applicable standard for the inspection is HJ/T 250‑2006, “Technical Requirements for Environmental Protection Products: Rotary Fine Grille.”

Its characteristics:

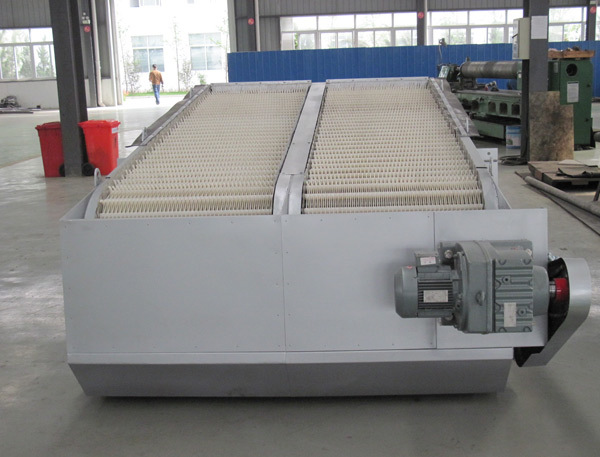

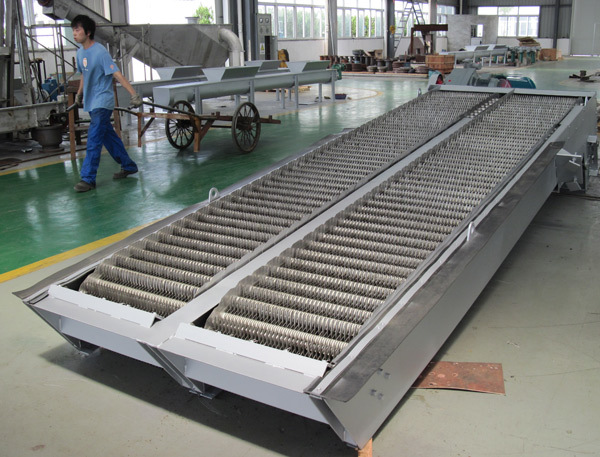

● Without grate bars, it consists of numerous small rake teeth interconnected to form a large rotating surface, ensuring thorough removal of slag.

● Equipped with an overload protection device, ensuring reliable operation;

● Slag discharge is accomplished by changes in the operating trajectory, and a rake‑tooth cleaning mechanism is provided, ensuring excellent slag‑removal performance.

● The rake-tooth clearance specifications are diverse, with a minimum of 3 mm;

● The rake teeth are highly durable and available in two materials: nylon and stainless steel.

● Complete unit supplied; easy to install and simple to maintain.

Working principle

Driven by the transmission chains on both sides, the rake teeth lift debris upward across the entire channel width. Upon reaching the upper section, the debris is discharged via the guide rails and the chain sprockets’ deflection mechanism, while any material adhering to the rake teeth is scraped off by a scraper blade.
